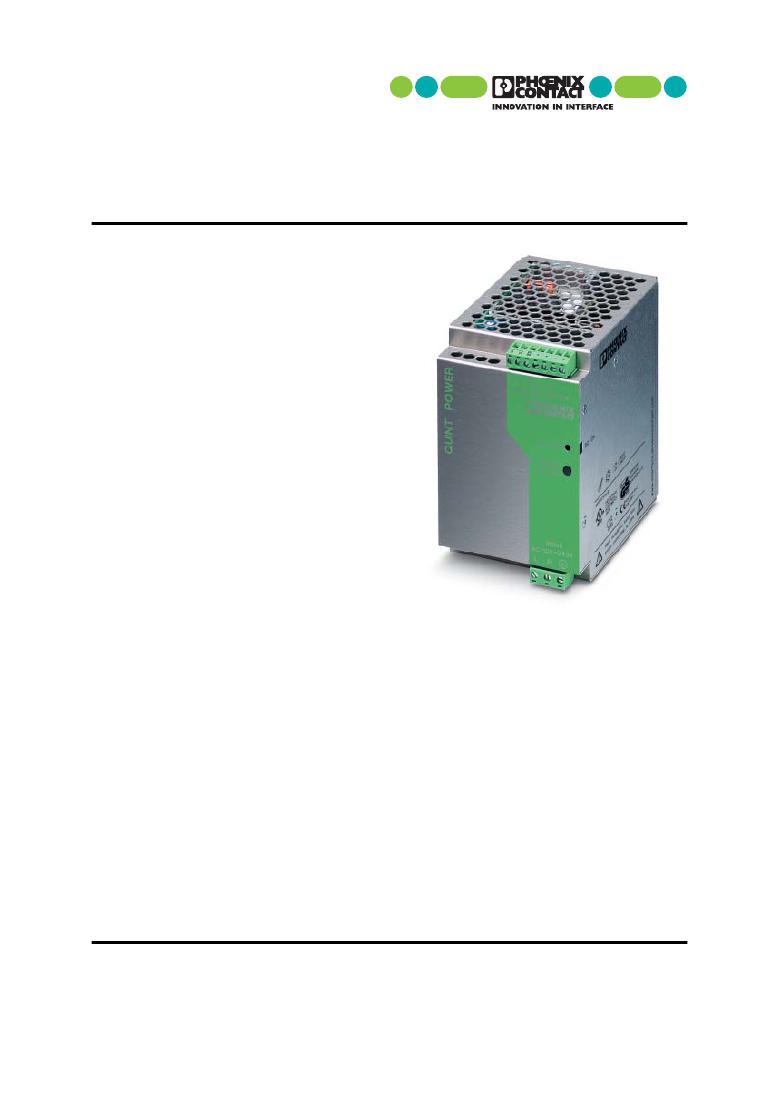

Power Supply, Primary Switch Mode

for Universal Use

QUINT-PS-100-240AC/12DC/10

QUINT POWER provides:

? Preventive function monitoring through

professional signaling

? Global use due to a wide range input

? A high level of operational safety even in complex

global networks

? Reliable startup of heavy loads due to POWER

BOOST

The reliability of a power supply determines the

availability of individual components in a system and

whether complex systems can function safely.

The globalization of markets increases the demands

placed on the power supply. A wide range input and a

high level of availability are required.

These requirements are met by Generation 2

QUINT POWER.

1. Short Description

The QUINT POWER product range offers universal

DC power supplies from 60 - 960 W. Depending on the

type, regulated and adjustable output voltages of

12 V DC, 24 V DC or 48 V DC are available for output

currents of 2.5 A, 5 A, 10 A, 20 A, 30 A, and 40 A.

These devices, which are designed as primary

switched-mode regulators, operate with a high level of

ef ? ciency so that the heat loss is kept to a minimum.

The high level of operational safety is also ensured in

complex global networks. QUINT POWER also

operates in applications where static voltage dips,

transient power supply failures or phase failure are

common.

Large capacitors ensure mains buffering of more

than 20 ms at full load. All 3-phase QUINT POWER

units provide the complete output power even in the

event of a continuous phase failure.

Reliable startup of heavy loads is ensured by a

power reserve of up to 50% - the POWER BOOST.

Preventive function monitoring diagnoses an

impermissible operating state and minimizes

downtimes in your system. An active transistor output

and an electrically isolated relay contact are provided

for remote monitoring of this state.

2. Area of Application

QUINT POWER can be used globally due to the

consistent provision of a wide range input.

In this way, your entire system can be tested at any

production location in the world and can be delivered to

any location in the world without faulty switching of the

input voltage. This reduces storage costs and logistical

effort.

An international approval package including CB

Scheme, UL 60950 for IT equipment, and UL 508 for

industrial control equipment enables the device to be

used globally.

Safe operation in adverse conditions is emphasized

by the approval of all QUINT POWER units with 24 V

output voltage by Germanischer Lloyd.

This signal not only provides information on the

device function, but also indicates a system overload at

an early stage.

Headquarters: ? Phoenix Contact GmbH & Co. KG ? Flachsmarktstra?e 8 ? 32825 Blomberg ? Germany

Phone +49 - 52 35 - 30 0 ? Fax +49 - 52 35 - 34 12 00 ? www.phoenixcontact.com

Local Contact: www.phoenixcontact.com/salesnetwork
